Right angle Helical Bevel Gear units 90 Degree Industrial Bevel Right Angle Indu

  • Right angle Helical Bevel Gear units 90 Degree Industrial Bevel Right Angle Indu
  • Right angle Helical Bevel Gear units 90 Degree Industrial Bevel Right Angle Indu
  • Right angle Helical Bevel Gear units 90 Degree Industrial Bevel Right Angle Indu
Model No.︰B series
Brand Name︰FLYING
Country of Origin︰-
Unit Price︰CNY ¥ 100 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items
Prev1314151617Next

Product Description

Product Description

Advantages:
1.High modular design
2.High loading support, stable transmitting and low noise level.
3.Excellent sealing, wide range of industry application.
4.High efficiency and save power.
5.Save cost and low maintenance.

Housing material
Cast iron HT250
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears
HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 40CrMnTi alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency
94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin
Brand of bearings China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF,  NSK
Brand of oil seal NAK --- Taiwan or other brands requested

Components:
1. Housing: Cast Iron or Steel Plate Welding
2. Gear Sets:
H Series Parallel Shaft Gear Units - Helical Gear Pairs
B Series Right Angle Gearboxes - Helical Gear Pairs & Spiral Bevel Gear Pairs
3. Input Configurations: Keyed Solid Shaft Input
IEC-normalized Flange Motor Adaptor
4. Output Configurations:
Single and Double Keyed Solid Shaft Output
Keyway Hollow Shaft Output
Splined Hollow Shaft Output
Hollow Shaft Output with Shrink Disc
Hollow Shaft Output with Mounting Flange

Lubrication
Oil Dip and Splash Lubrication (Additional Compensation Oil Tank)
Forced Lubrication (Additional Oil Pump)

Features:
1. Highly modular design, modular and combinable spare parts, short delivery time
2. Sturdy cast iron or steel welding gear box, hardened and wearable gears all contributing to high quality and performance
3. High power, high reliability
4. Variety of output options: single or double solid output shaft, hollow output shaft with keyway, spline, shrink disc and flange
5. Multiple mounting options
6. Wide range of gear ratio and output torque
7. Optional accessories

Cooling
Natural Cooling
Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)

Applications:

1.Chemical agitator
2.Hoist and transport
3.Steel and metallurgy
4.Electric power
5.Coal mining
6.Cement and construction
7.Paper and light industry

Payment Terms︰TT

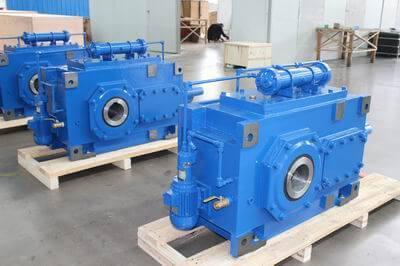

Product Image
