Speed Reducer gearbox for Straight Line Wire Drawing Machine

gearbox for drawing machine
  • gearbox for drawing machine
  • Speed reducer for drawing machine
Model No.︰LSJ series
Brand Name︰FLYING
Country of Origin︰China
Unit Price︰US $ 100 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items
Prev1112131415Next

Product Description

Description:
LSJ series gearbox is suitable for straight line wire drawing machine. As for the drawing machine work in 24 hours continously, the gearbox should be safe and reliable. The metal drawing machine is very strict with continously operation, it will cause severe economic loss once break off. Our LSJ series gearbox has solved the problem with reliable structure, stable operation and convenient maintenance, especially for straight line wire drawing machine.

Features:

  • The gear reducer is designed by the installation characteristics of the straight line wire drawing machine. The specifcification and the dimension of each model is standardized and highly integrated. LSJ series gearbox and water plate adopt integrated design. The inner of the water palte has a back-water hole and the outer with inlet hole to make sure the cooling water of the drum discharged freely, and strengthen the wire cooling and assures the wire strength after drawing.
  • LSJ series gearbox has oil filler, oil drain hole, oil sight glass hole and breather hole, which is convenient for the maintenance of the gearbox. The internal of the gearbox uses complete oil lubrication to ensure sufficient lubrication of the rolling parts.
  • LSJ series gearbox adopts planetary struction with high efficiency, high output torque, high load capacity and smooth operation. It guarantees good climb of steel wire on drawing capstan. The input parts of the LSJ series reducer use unloading structure to ensure that no radial force on the input shaft and only bear torque which will increase the input part oil seal service life.
  • LSJ series gearbox can be easily installed by machining mounting holes on the water plate.Remove belt and lift the gearbox from base frame. It is convenient for installation and maintenance.

Application:
LSJ series gearboxes are widely used in Straight wiredrawing machine, water tank wire-drawing machine, coiling and uncoiling device, planetary strander, closing machine, etc.

Payment Terms︰TT
Product Image

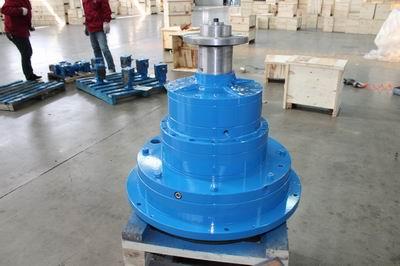

gearbox for drawing machine
gearbox for drawing machine

Speed reducer for drawing machine
Speed reducer for drawing machine
